Photoluminescent Adhesive tape (LLL)

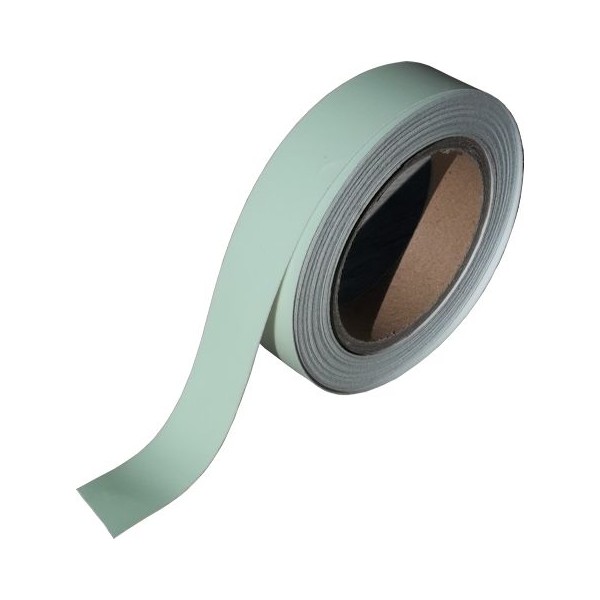

Photoluminescent self adhesive tape, intensely luminescent (Class D).

5 sizes available in stock:

2.5 cm x 10 meters

2.5 cm x 25 meters

5.0 cm x 25 meters

5.0 cm x 10 meters

10 cm x 25 meters



3 Classes Luminance: C / D / E




62.71£ tax incl.

phosphorescent band LLL Technical Data Sheet
Versions

LUMINESCENT LOW LOCATION LIGHTING (LLL)

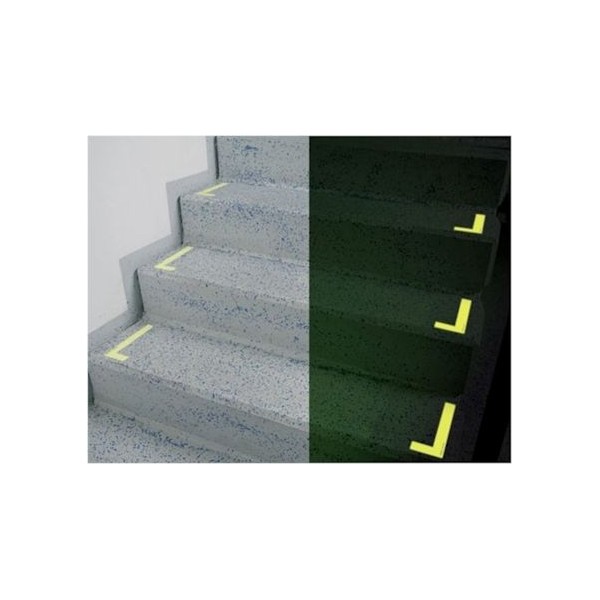

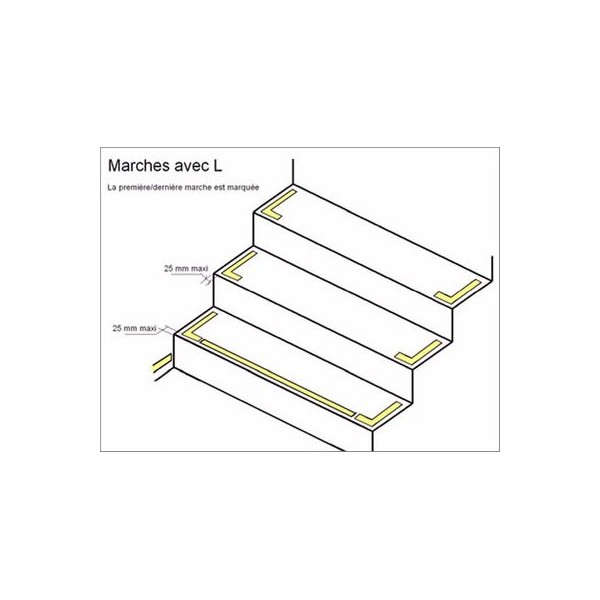

Markings on the walls to provide guidance and draw the outlines of obstacles or of doors.



Our photoluminescent tapes are our most popular products since years: they are very cost-effective and have many qualities:

- the tapes strongly adhere (High resistance to tearing)

powerfully luminous (50% above european standards)

very resistant thanks to its composition of PVC.


produit testé et certifié par SGSProduct tested and certified by SGS

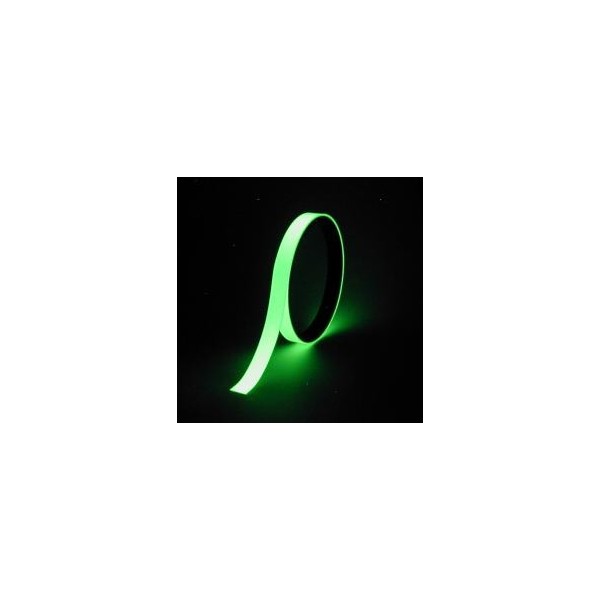

The photoluminescent tapes LLL recharge quickly when exposed to natural or artificial lighting, and glow strongly in the darkness.
Their glow is very powerful, exceeding the standards of French and European recommended guidelines of NF EN 1838.
Gradual diminution of glow intensity performance (standard NF X08-050-1)
:


Vinyl Luminance Measurements Adhesive PVC
Class C: 10 minutes = 211mcd / m2, 60 minutes = 30mcd / m2;
Class D: 10 minutes = 295mcd / m², 60 minutes = 36mcd / m2;
Class E: 10 minutes = 505mcd / m2, 60 minutes = 69mcd / m2


We do the luminance measuring tests in our laboratory. Our measuring data sheets are available on request.



Specification sheet:

A.1 Equipment description



Description : Photoluminescent safety device for the signaling and evacuation of people
Standards : Product compliant with standard NF X 08-050-1, 2 and 3
Dimensions : All sizes
From 2,5 cm to 100 cm wide, from 10 m to 25 m long
Cut-outs on request. Minimum order : 5 sqm
Thickness : From 0,25 to 0,35 mm



A.2 Photoluminescent characteristics



Photometric property, luminance and classification :
For safety signals, Class C is the minimum required in Europe




A.3 Resistance characteristics



Operating life : Our photoluminescent products are renowned for their durability (the phosphorescence has a service life of 10 to 20 years), without deterioration of performance or maintenance requirements, except a simple cleaning (dusting and washing)



Luminance* : Higher than Class D : After 10min = 317,60 mcd / sqm (Measures according to DIN 67 510 part 1)
Fire resistance * :(NF EN 60695-2-10, NF EN 60695-2-11 and NF EN 60695-2-12): Very good flame resistance  : No flame after 30 sec at 850 °C.
Resistance to bad weather* : (NF EN ISO 4892-2 - NF-ISO4892-2 (1303): Excellent resistance to bad weather (heat, rain, frost) and UVs*.
Water resistance *: The product is perfectly waterproof ( NF-NFX08-050-2 5.3.3)
Abrasion resistance * : (NF EN ISO 7784-3): Excellent resistance : Slight marking and no loss in mass after test.
Salt spray test * :(NF EN ISO 9227, NF-NFENISO9227): No deterioration on the photoluminescent part : Compliant
Washing resistance * :(NF EN ISO 105-X12 ): Excellent resistance to washing, detergents.
Tear resistance* : (NF X 08-050-1) : Excellent resistance to tearing






A.4 Implementation recommendations



Application : Easily printable and cuttable.
Maintenance : Photoluminescent products don't need maintenance.
Cleaning : Regular dusting is recommended to ensure optimal brightness. Cleaning with mild detergent.


Customization:

Special width are availble on order (minimum cutting on a roll of 1 meter of width). We can also do printings.


The NF EN 1838 European standard gives very precise outlines for : to allow the evacuation of places, to ensure an easy location of safety and fire fighting equipments, to reduce the risk of panic, to maintain visibility in areas potentially dangerous, to facilitate eventual emergency services.

The means required are : a location lighting of the path to follow. A minimum of ambient lighting on the escape routes and exits. An ambient light to mark around safety equipments.
