Photoluminescent label for wines and champagnes

We offer luminous adhesive film to produce photoluminescent labels, applicable to wine, spirits or champagne bottles but of course also to all types of objects.

How does a phosphorescent label work?

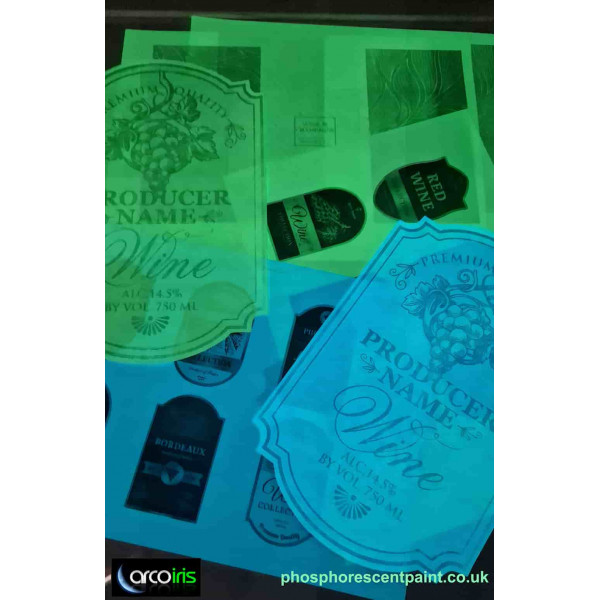

Phosphorescence is a phenomenon classified as photoluminescence, which is characterized by the emission of light (luminance) in reaction to a light “excitation” (white, natural or UV light), and whose manifestation (afterglow) persists well. after the excitement has ceased.

Phosphorescence therefore needs two things to be effective:

sufficient darkness

a source of illumination to be activated: it is estimated at only 15 minutes with low lighting of 25 lux for maximum charging.

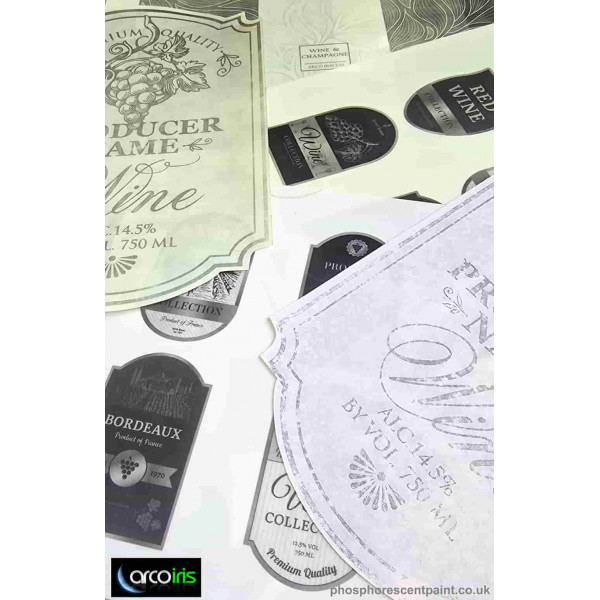

Appearance of phosphorescent labeling

For green phosphorescence labels, the daytime appearance is a slightly greenish white color.
The more efficient the label, the more it will have a pronounced greenish appearance.

For turquoise or blue phosphorescence labels, the daytime appearance is closer to white, however the luminance intensity and afterglow are lower than for the green color.

Emission color (phosphorescence)

PL1 Green       PL3-B Blue
PL2 Green       PL3-A Turquoise
PL3-G Green   PL4 Green

The adhesive films are available in glossy (60°) and matt satin* (10-15°)

* for the matte finish a minimum order of 300m² is necessary

PLM films are films presenting both a phosphorescent surface and opalescent reflections

Print and cut mode

Our phosphorescent labels are very easy to cut and print
Depending on the type of material, different printing modes are accepted

Ref. Material - Optimal printing mode

PL1 Acrylic UV, Eco solvent, Screen printing
PL2 Acrylic+PET UV, Eco solvent, Screen printing
PL3 PET UV, Screen printing
PL4 PET UV

Types and materials

photoluminescent labels are thin and flexible adhesive films composed

> a powerful glue
> an opaque white background
> a phosphorescent finish

Label thicknesses

Thickness is an important parameter and when it is too great, it can become unaesthetic. However, the greater the thickness, the better the phosphorescent intensity level.

Ref. Material Thickness in microns with transfer paper included

PL1 Acrylic 120 µm 290 µm
PL2 Acrylic+PET 220 µm 350 µm
PL3 PET 260 µm 400 µm
PL4 PET 225 µm 305 µm

Width sizes

lengths: 25 or 50 meters

width: 122 cm

All cutting widths can be made, but the entire roll must be ordered if cutting is required.

Realization :

We are manufacturers and resellers of all kinds of photoluminescent materials and equipment and we do not offer label printing services within our company

We can have this cutting and/or printing work carried out for you by our experienced and specialized partners on this type of photoluminescent adhesive labels.

Difference between phosphorescent and fluorescent labels:

the phosphorescent labels glow in the dark, after stopping exposure to a charge of light energy, without energy input. Their phosphorescence decreases slowly and can last for several hours.

Fluorescent labels glow brightly in dim light or darkness when exposed to a violet or ultra violet light source. Their effect turns off immediately when the excitation light is turned off

Performance and lifespan:

Ref. Material Lumiance 10min luminance 60mn (in micro candella / m²)

PL1 Acrylic 108 12
PL2 Acrylic+PET 110 13
PL3-G PET 115 14
PL3-B PET 89 11
PL3-A PET 100 9
PL4* PET 105 11

Phosphorescent Labels allow phosphorescence with an almost unlimited lifespan and without any decrease in performance.

Storage: the labels are resistant to light, liquids, alcohol and detergents but also, they resist abrasion relatively better than paper labels.

Samples:

We offer a paid sample kit in A4 format. (PL1+PL2+PL3+PL4 Color GREEN)

Minimum order: 1 Roll of 30.5m²

Delivery time: 15 days
