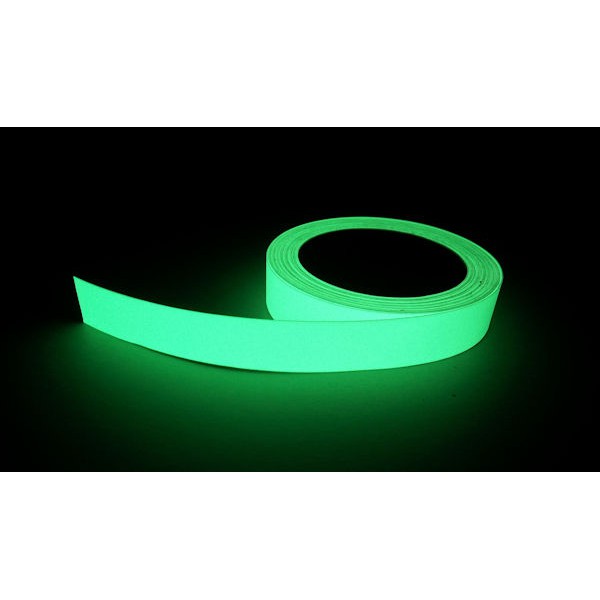

High intensity phosphorescent adhesive for LLL guidance

Phosphorescent adhesive available as
simple version or with arrow
From 25mm to 100mm wide
Shipment within 24h

On sale On sale!
64.80£ tax incl.

evacuation guidance solution LLL PRICES TAPES LLL
Versions

Description:

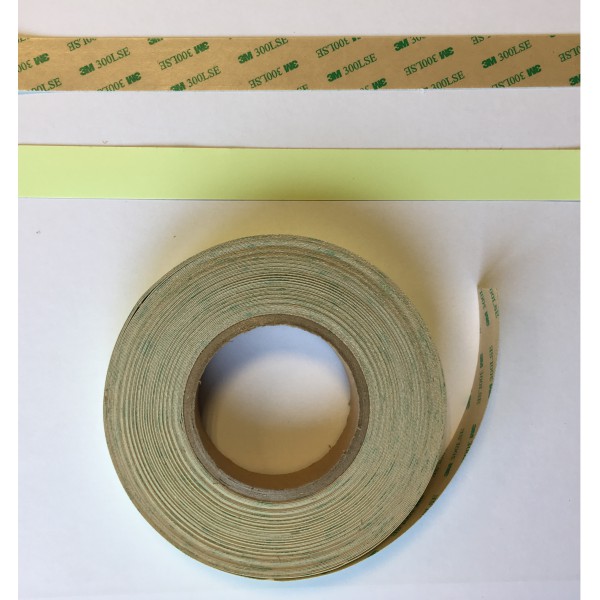

High adhesion phosphorescent adhesive with self-adhesive mounting. Version specially equipped with strong tear proof adhesives.

Use:

phosphorescent adhesive allowing guidance under

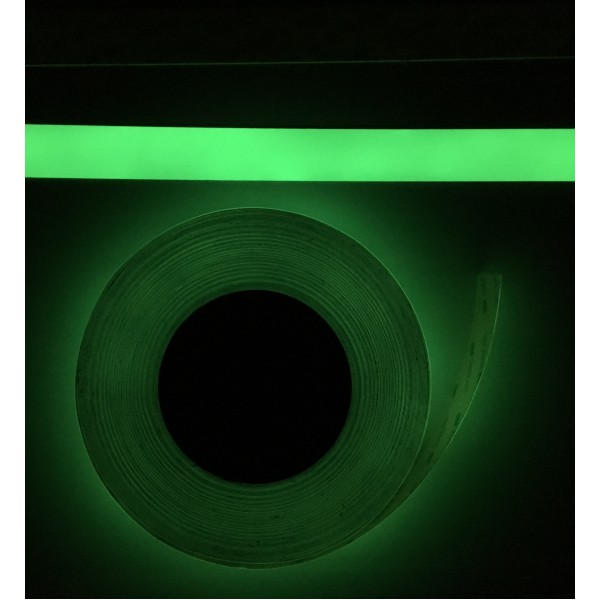

any lighting conditions (excellent visibility in the dark)
Based on the standards, the installation of the phosphorescent adhesive must be done at ground level or at the base of the wall (area not affected by smoke). Installation on smooth surfaces.


Guidage LLL (Zone Hors Fumée)


Performances:
Class D, very high intensity.
Fully charged in 15min with low light

The dimensions proposed are legal sizes from 25mm to 100mm wide. 0.35mm thick.


High Intensity Phosphorescent Adhesive


Choose your version on this page:
>> 25mm x 10m
>> 25mm x 25m
>> 50mm x 25m

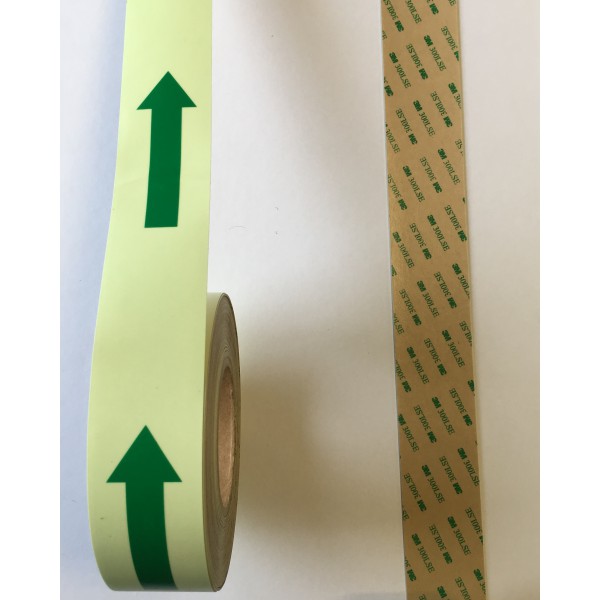

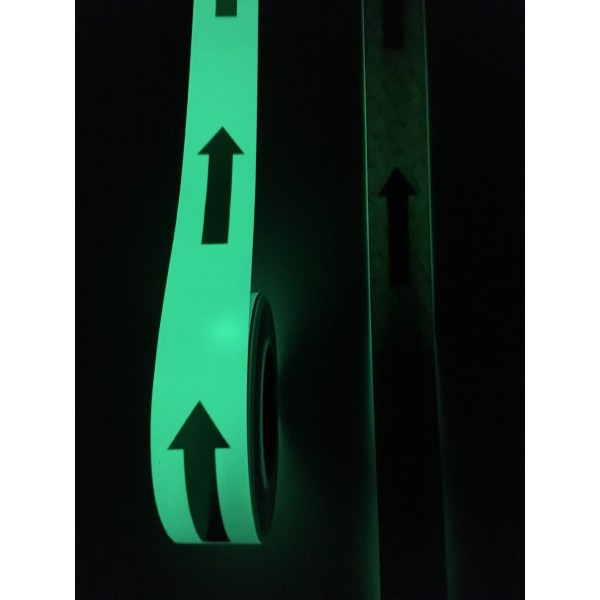

>> 50mm x 25m with arrow
>> 10mm x 25m


Material
Tear Proof Vinyl PVC, resistant to UVs, washing, water, abrasion, ignition


produit testé et certifié par SGSProduct tested and certified by SGS


Photoluminescent evacuation guidance solution (Refer to attached PDF for complete details of an installation according to the standard)
-
The LLL evacuation guidance system is a standardized system (NF X 050 80 - 2) which provides a continuous guidance solution in premises, using an uninterrupted photoluminescent line, identifying the complete path, with obstacles, doors, and steps, towards emergency exits.


Guidage Photoluminescent LLL


The photoluminescent strips must be placed in low spots on the floor, or on the wall by a maximum height of 40cm, without interruption, but also on door frames, panic handles and push bars, banisters, step corners and landings.


The photomuminescent strips may be used for obstacles (pillars, corners, edges, equipment, etc.), but it is best to use hatched strips.


Our high-adhesion photoluminescent tapes are certified photoluminescent equipment and comply with standards, including the additional requirements for the LLL standard NF X 08-050-1


Extra-strong level of luminance: Class D
Their performance according to a reference lighting with a 1000lux xenon lamp for 5 minutes are:
• 295 mcd/m2 after 10 min
• 36 mcd/m2 after 60 min.
Their performance under very low practical lighting conditions are:
Example: Low lighting of 25 lux, for 15 minutes,
• 108.26 mcd/m2 after 10 min
• 12 mcd/m2 after 60 min.
