Photoluminescent evacuation plans and directions

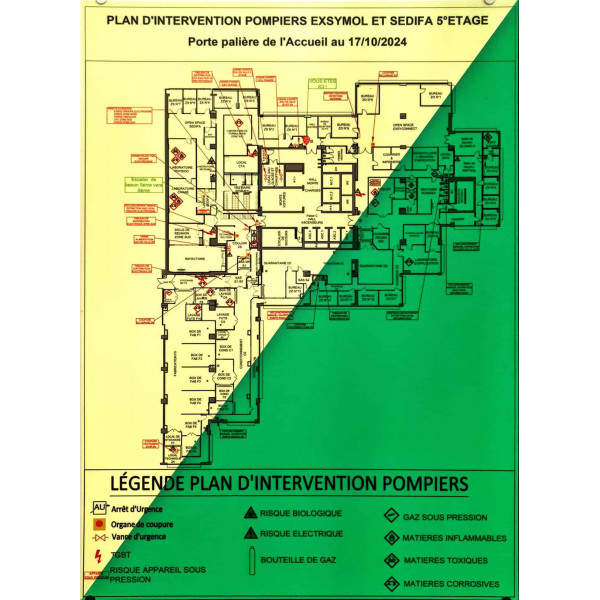

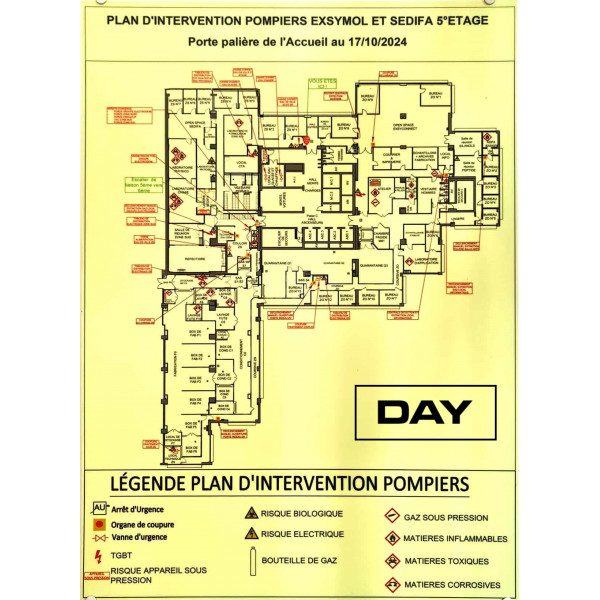

The photoluminescent evacuation plan and the safety instructions provide information for guidance and evacuation in all circumstances, even in total darkness.

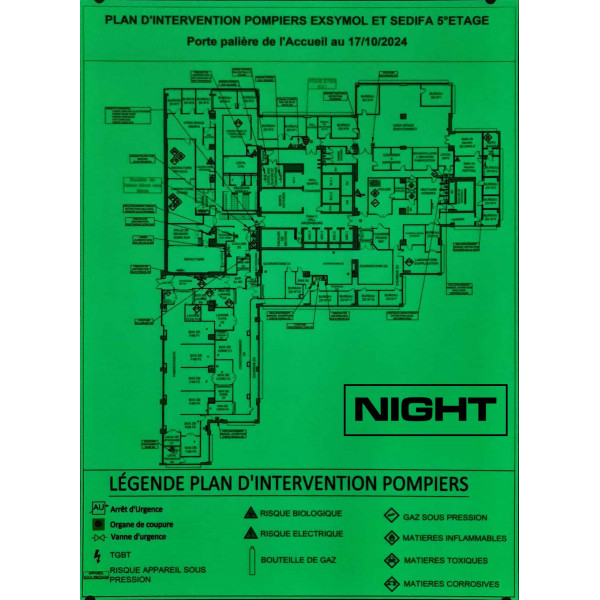

Their phosphorescent surface recharges quickly with lighting and remains visible in the dark.

Arco Iris cuts out and prints your phosphorescent evacuation plans or your photoluminescent instructions on photoluminescent PVC supports.

Material and printing:

We carry out the four-color printing of the evacuation plans on photoluminescent PVC panels 1.3mm thick. PVC is an economical, standard, lightweight, and high-performance material, usually used for all indoor signage.

For achievements on different materials, please contact us for an offer. We offer aluminum or stainless steel, for plans intended for outdoor use

Classes and marking

We offer class C and D photoluminescent panels, in accordance with the ISO 7010 standard governing evacuation, emergency and firefighting symbols and pictograms, display panels, and the ISO 17398 international luminance standards.

Each fire guidance plan has a small Class marking printed at the bottom of the panel: Example C: 218 / 30 - 2100-K-W

218: Measurement* after 10min

30: measurement* after 60 min

2100: extinction in minutes

K: green (color emitted in darkness)

W: White (daytime visible color)

* expressed in microcandellas/m²

Our offers

Our prices are very competitive and our delivery times are as short as possible.

Sizes to choose from

A4: 21 x 29.7cm

A3: 29.7 x 42cm

A2: 42 x 59.4cm

Delivery options with adhesives and frames.

Arco Iris SAS can offer adhesives or frames, on estimate
We do not carry out the plans.

Only 4 regulatory colors are used: black, green, red, blue

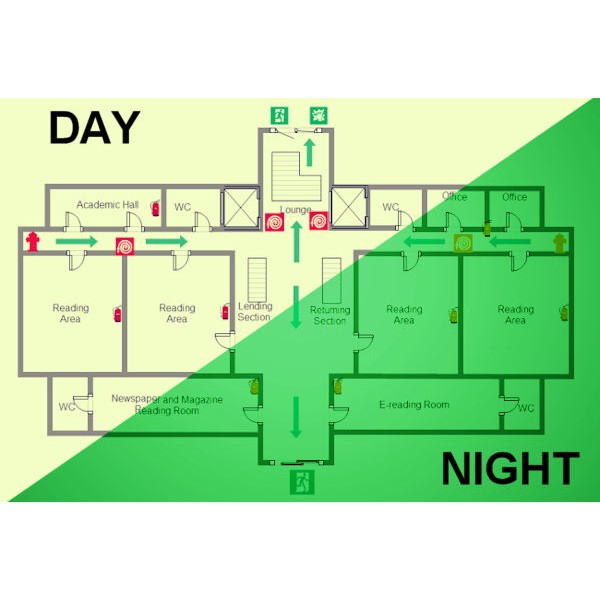

Photoluminescent evacuation plans and instructions use the phosphorescent yellowish white/greenish background color instead of white.

Excitation lighting:

Our safety signs and photoluminescent safety plans can fully recharge in 15 minutes with lighting from 25 lux, which corresponds to a low light environment

We recommend lighting with cold lights (3000k to 6500k bulbs)

Lifetime

Phosphorescence does not decrease in performance over time or with use. To maintain a good level of efficiency, simple cleaning and dusting is recommended.

How to order your photoluminescent evacuation plan or your photoluminescent instruction signs?

Choose size A4, A3 or A2

Choose quantity

Build the online shopping cart, choose the shipping method and pay for the order

After ordering, email us at info@phosphorescent.fr the plan or plans to print. Only PDF, AI, or CDR files are accepted.

For non-standard dimensions, please request a quote by email

Legislative framework:

In France, the NF X08-070 and ISO 23601 standards govern the implementation of evacuation plans:
* French standard: Safety information and instructions – Instructions, instructions, evacuation plans and
intervention (NF X08-070)

* International standard: Evacuation and rescue plans (ISO 23601)
Cutting and printing of plans, instructions, and other personalized equipment

safety equipment or sign conforming to ISO 17398:2004
