In tunnels, in case of accident and/or fire, it is critical to provide information and guide people quickly towards the exits.

In case of complete electrical power failure, photoluminescent signage in tunnels is the only effective alternative to provide visual signals in the dark (emergency exits, access to emergency calls, fire extinguishers...)

Tunnels are environments: photoluminescent panels in tunnels should be adapted to ensure high robustness and greater luminance.

Arco Iris produces a special range of aluminum or stainless steel signals and panels, with very high levels of photoluminescence (Class D, E, F or G)

How to order?

The product is custom made, and is not kept in stock.

Each panel is a single unique print.

Please contact us by email for a quote.

Photoluminescent evacuation signals features in tunnels over 500 meters in Europe (2004/54/EC Directive)

Panel installation:

The photoluminescent emergency exit signs for tunnels are attached to the walls.

Regulation specifies that photoluminescent exit panels should be installed at 25m intervals and placed at a height of 110 to 150cm.

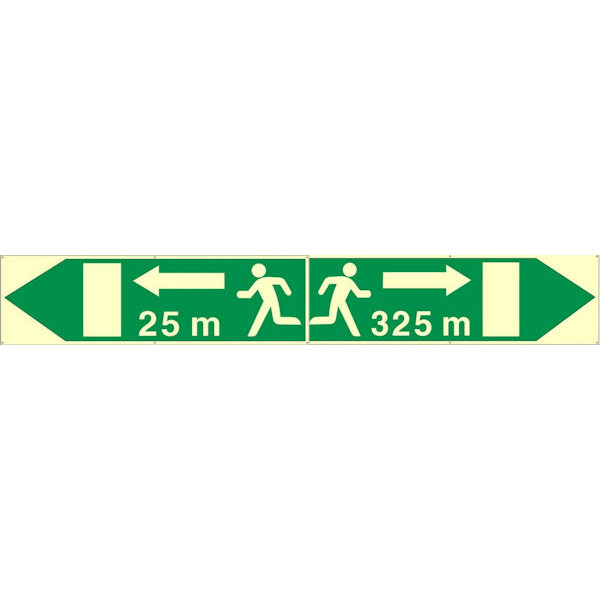

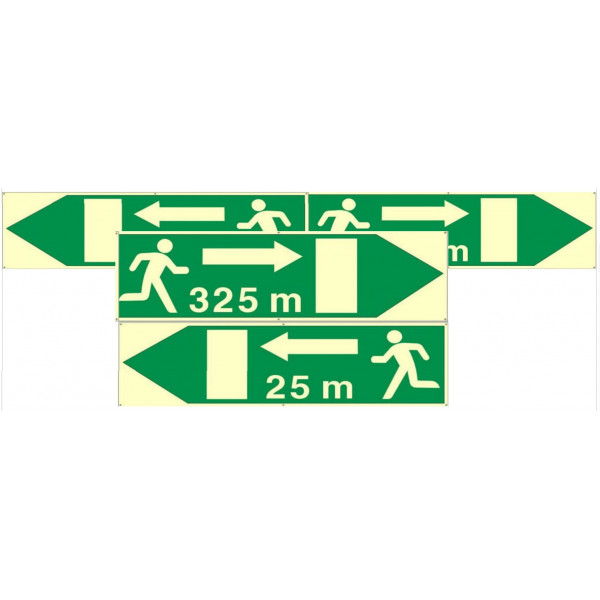

The pictograms are large enough (100cm x 50cm) to be visible at 25m (rule of l = z0xh) and indicate the distances to the nearest two emergency exits in both left and right directions. The two signals may be arranged side by side, or on top of each other.

Arco Iris photoluminescent products for tunnels

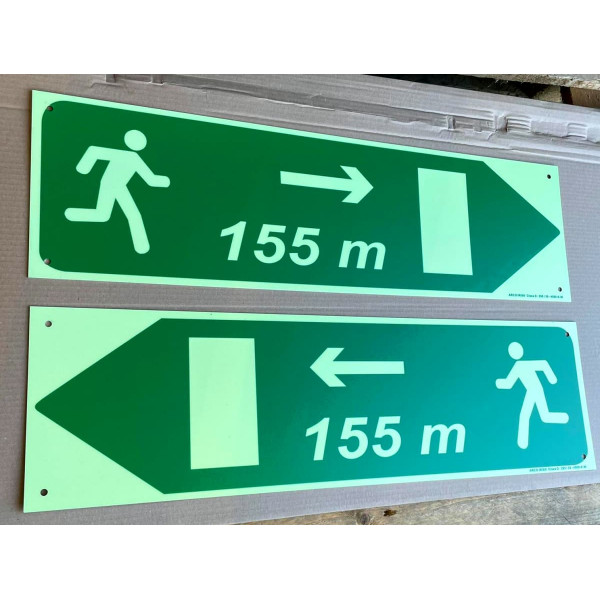

Aluminum panel and class D photoluminescent epoxy coating

1,1mm Thick

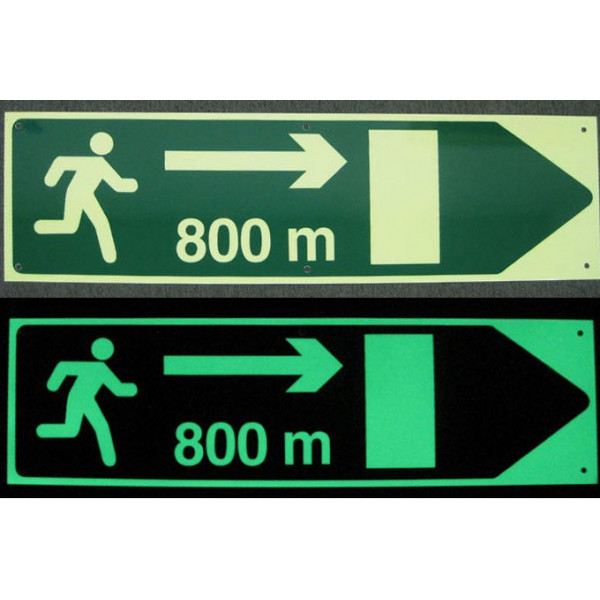

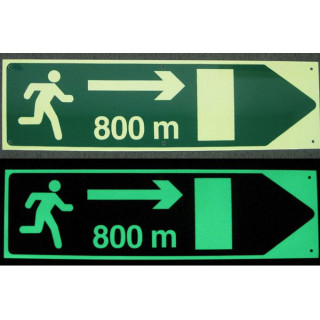

Appearance: Yellowish / Green in darkness

Luminance level according to ISO 17398 greater than Class D minimum

Luminance measured at 285mcd/m2 at 10min and 37mcd/m2 at 60min, with a decay at 3200min

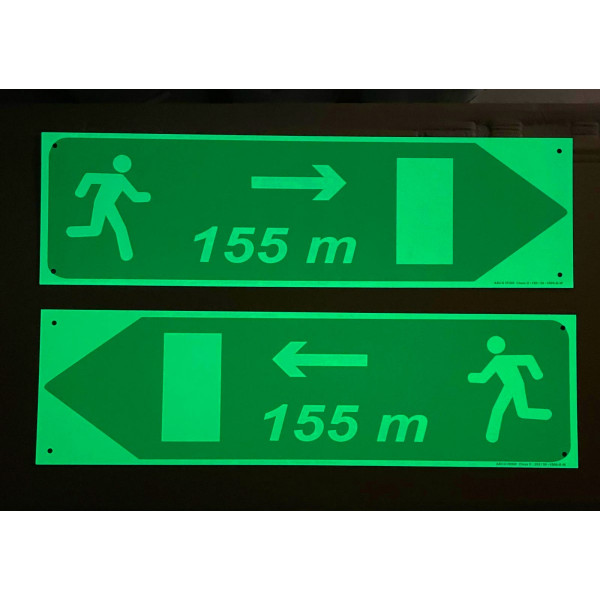

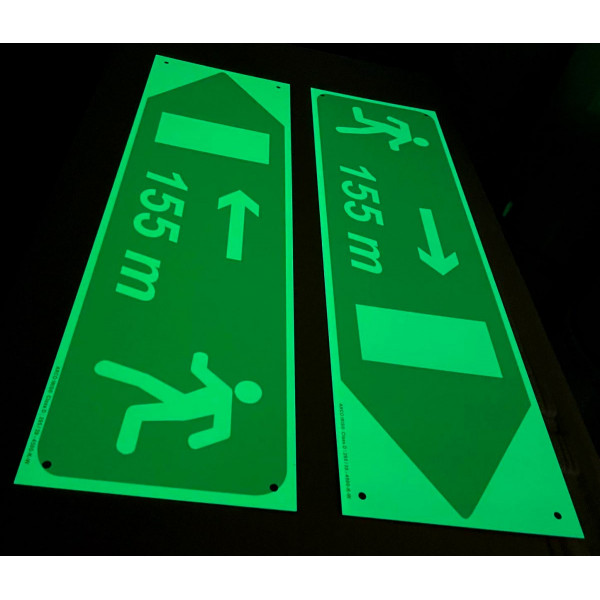

Our aluminum photoluminescent panels for tunnels have very high levels of photoluminescence to ensure efficient loading even at low lighting levels in the tunnels

The epoxy layer is weatherproof and resistant to various external aggressions (water, salts, fumes, washing). Easy to clean and dirt-resistant (resistance to all detergents).

Aluminum photoluminescent panels provide higher durability and robustness compared to PVC panels

Other photoluminescent products for tunnels:

Arco Iris produces custom signs of various large sizes, and also rafters.
