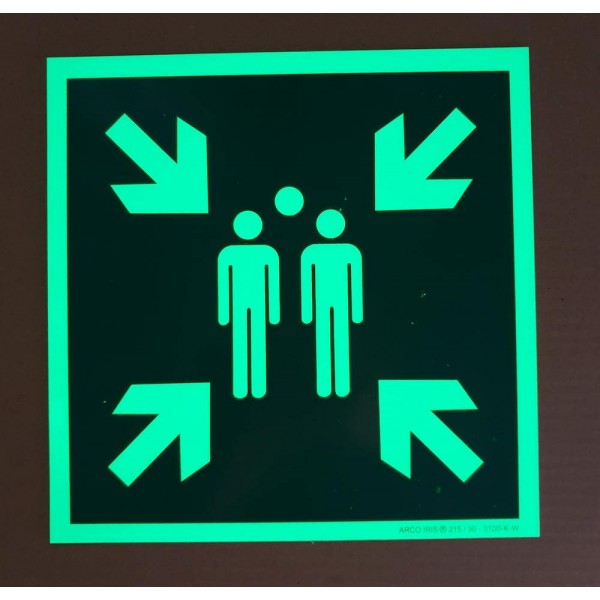

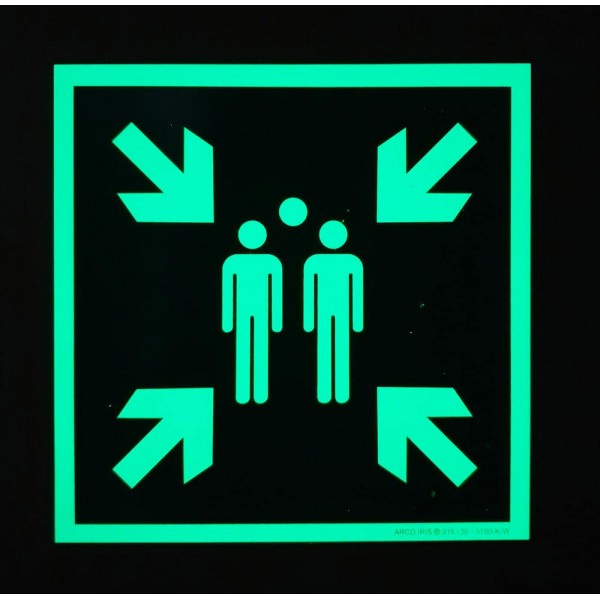

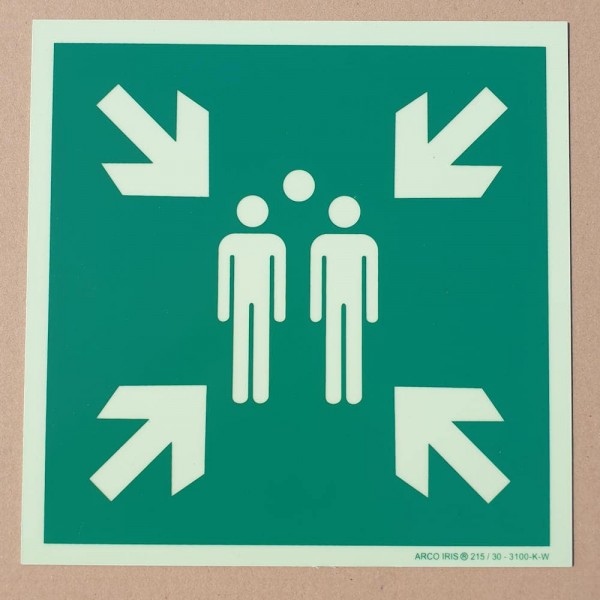

Photoluminescent Assembly Point Sign E007

The Assembly Point for gathering after evacuation Panel is used for safety at work or for places open to the public.

Pictogram according to ISO EN 7010: code E007

A photoluminescent signal enables maintenance-free operation (by reloading with ambient light) and a lifespan of several decades.

It is visible both day and night time.

EC compliant, NF X08 050 and EN ISO 7010

25 cm x 25cm PVC Panel
Apply with a glue adapted to the substrate (PVC, NEOPRENE, EPOXY)

Green Safety Phosphorescence - Class C Europe

Dimensions: 215 / 30 - 3100-K-W

The assembly point panel should be prominently installed to the proper height, either on a wall or suspended, "back to back"

Version 2 – Concise / commercial style
Fire classification: M2
(SGS test – 25/02/2026)
Classified as M2 in accordance with standard NF P 92-507, this material offers good resistance to ignition whilst remaining combustible.
The ignition times (≈70 s on the underside / >110 s on the top) confirm a slow reaction to fire and controlled spread.
No persistent flames or flaming drips were observed, ensuring effective natural self-extinguishment.
This product contributes minimally to the spread of a fire.
